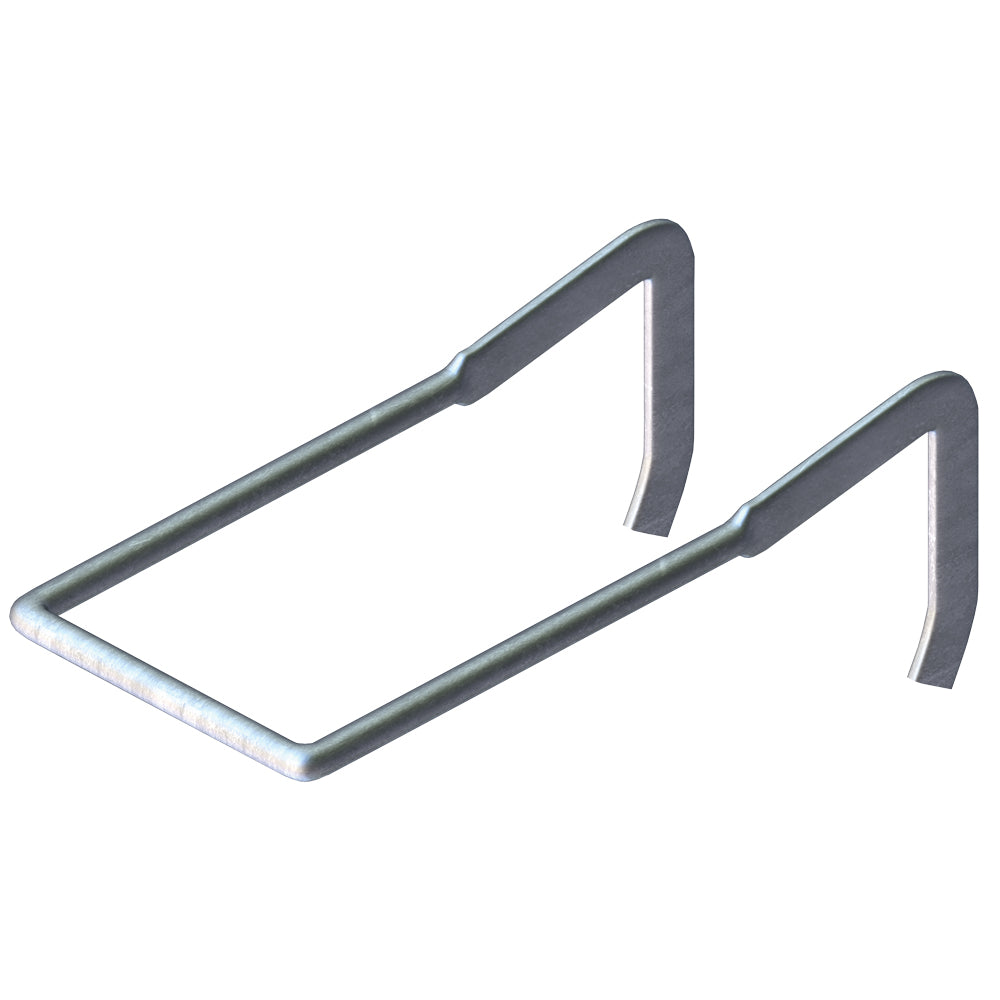

H&B 2X-HOOK™ - Hot Dip Galvanized (350/box)

The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

• 2X-HOOK™ CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
• The embedded portion of the 2X-HOOK is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
• U.S. Pat. No. 8,613,175

Available Finishes:

• Hot Dip Galvanized
• Stainless Steel
• NOTE: H&B Recommends Stainless Steel for maximum protection against corrosion
