HB-213 Adjustable Veneer Anchor - 14 GA Hot Dip Galvanized

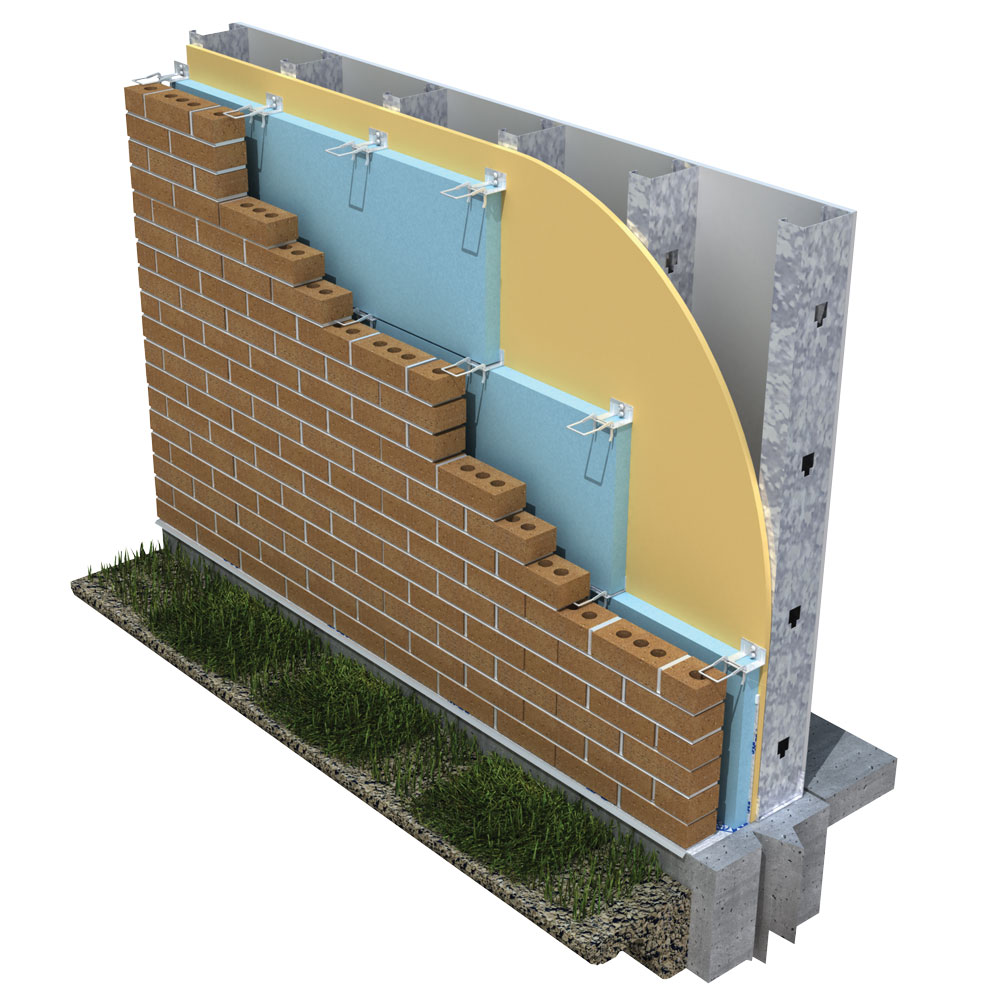

The HB-213 is an adjustable veneer anchor for metal stud and wood stud construction.

The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

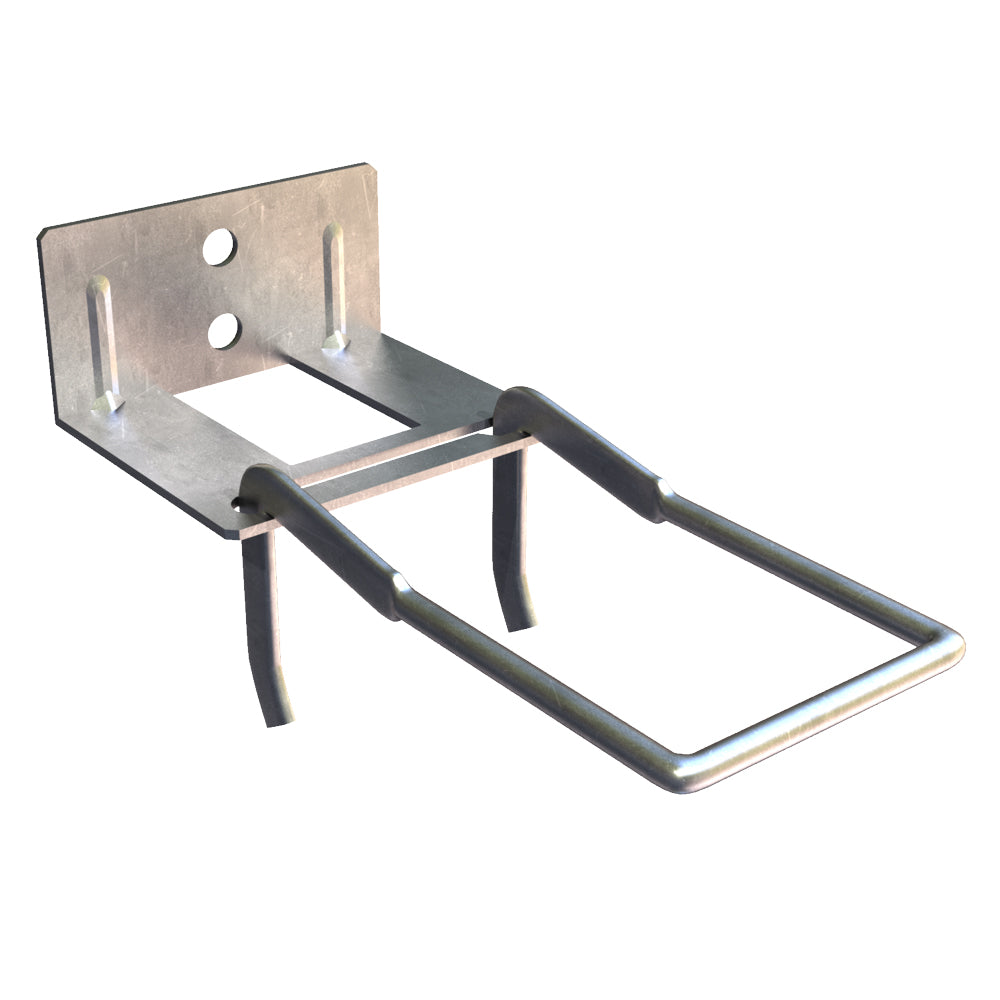

• The L-shaped plate section has numerous ribs for added strength and 9/32" holes for connecting screws.

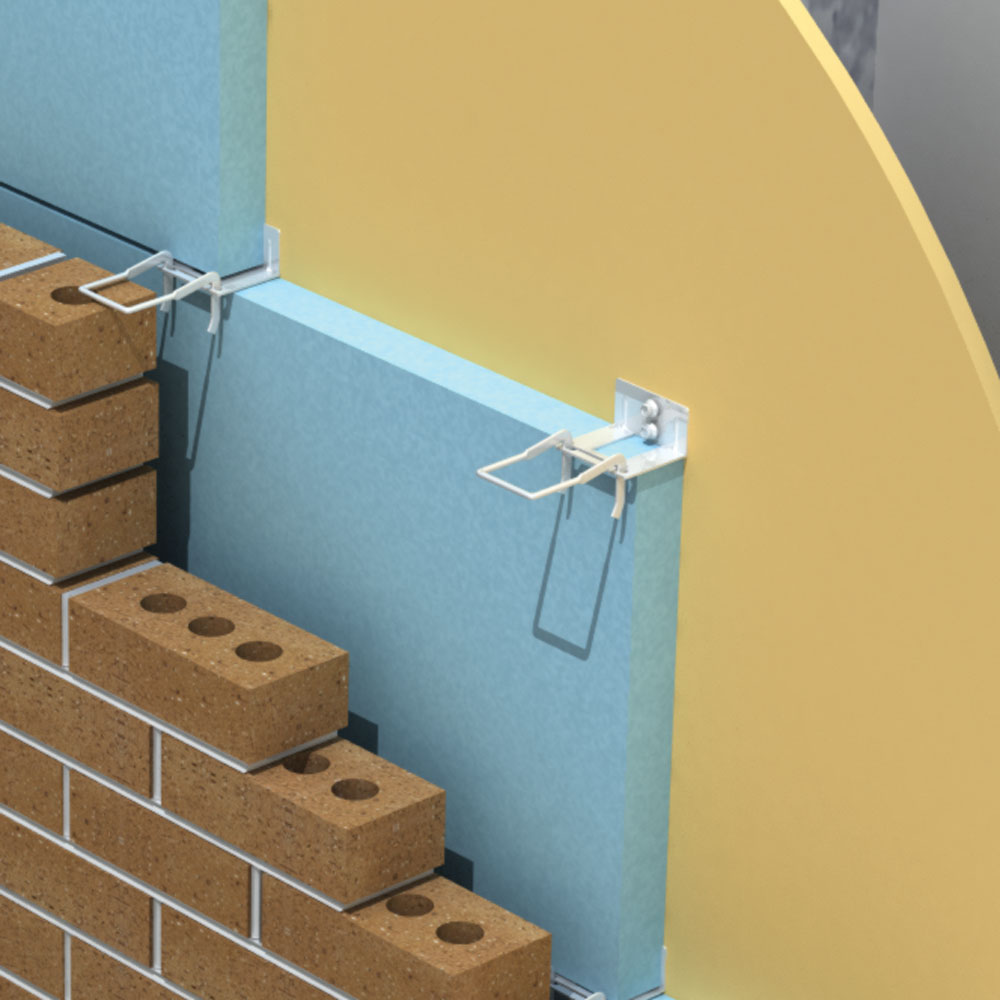

• The eyelets allow 2X-HOOK™ (pintle) insertion (1 1/4" maximum allowable eccentricity) and are sized to prevent in-and-out movement beyond allowable tolerances.
• For concrete, CMU or brick backup, use the HB-5213.
• Formerly called the HB-200/DA-213 or HB-200 Adjustable Veneer Anchor
• NOTE: 2X-HOOK™ CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
• The embedded portion of the 2X-Hook is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
• 2X-HOOK™: U.S. Pat. No. 8,613,175 Test results available upon request.
• HOOKS ARE SOLD SEPERATELY

GAUGES:

• 14 ga. or 12 ga. thick
